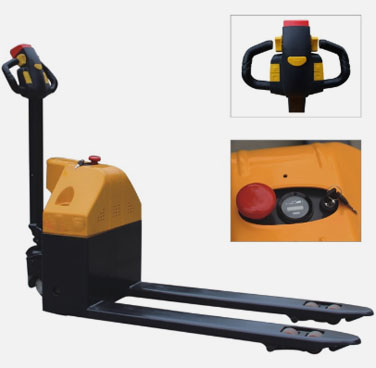

Electric pallet truck
All electric pallet handling
Details
主要特点 MAIN CHARACTER
1. 动力强劲，轻松省力，载荷1.5吨，满足大部分企业的货物搬运需求。
2. 美国CURTIS交流控制器，质量可靠，性能优异，使整车性能达到最佳状态。
3. 高强度车身设计，高效稳定的部套件，保证整车经久耐用。
4. 体积小巧，节省空间，尺寸小巧，在很小的通道亦能顺利通行。
5. 活方便，车型轻巧灵活，操作极其方便。
6. 经济节能，性价比极高，60AH免维护电瓶。
7. 内置智能充电器。
1. Heavy duty design.
2. Compact design, cost-effective.
3. Top quality controller system from CURTIS, high reliability, ensures best performance in different states.
4. Full-electric control of drive and lift.
5. Intelligent built-in charger.
技术参数 TECHNICAL DATA
|
特性 Identification |
产品型号Model |
|
CBD20 |
|||
|
配置号 Config-code |
|
G15 |
||||
|
驱动形式Drive Unit |
|
电动Electric |
||||
|
驾驶方式Operation type |
|
步行式 Pedestrian |
||||
|
额定载重Load capacity |
Q |
kg |
1500 |
|||
|
基本尺寸 Dimension |
总长Overall length |
L |
mm |
1630 |
||
|
总宽Overall width |
b |
mm |
560 |
685 |
||
|
总高Overall height |
H2 |
mm |
1252 |
|||
|
最小货叉高度Min. fork height |
h1 |
mm |
80 |
|||
|
最大货叉高度Max. fork height |
h2 |
mm |
200 |
|||
|
货叉尺寸Fork dimensions |
L1×b2×m |
mm |
1150×152×46 |
|||
|
货叉外宽Maximum fork width |
b1 |
mm |
560 |
685 |
||
|
转弯半径Turning radius |
Wa |
mm |
1460 |
|||
|
轴距Wheelbase |
Y |
mm |
1255 |
|||
|
性能 Performance |
行驶速度Travel speed (满载Loaded/空载Unloaded) |
Km/h |
3.5/4.0 |
|||
|
提升速度Travel speed (满载Loaded/空载Unloaded) |
mm/s |
51/60 |
||||
|
下降速度Travel speed (满载Loaded/空载Unloaded) |
mm/s |
59/52 |
||||
|
爬坡能力Gradeability (满载Loaded/空载Unloaded) |
% |
2/6 |
||||
|
制动方式Brake type |
|
电磁制动Electric-magnetic |
||||
|
电机 Electric Motor |
驱动电机功率Drive motor power |
KW |
0.65 |
|||
|
提升电机功率lift motor power |
KW |
0.8 |
||||
|
蓄电池 Battery |
Ah/V |
60/24 |
||||
|
重量 Weight |
净重(不含电池) Weight w/o battery |
kg |
205 |
|||
|
电池重量 Battery weight |
kg |
32 |
||||
