Battery counterbalance truck
Three fulcrum balanced heavy electric forklift truck
Details
主要特点 MAIN CHARACTER
1. 三支点叉车适合于狭窄通道和有空间限制的作业，转弯半径小
2. 采用美国CURTIS电控系统，电控系统成熟可靠。
3. 高强度车身设计和门架，坚固耐用，使用寿命长
4. 整车关键部件，从电控、仪表到安全开关，都采用进口的知名品牌，重要部件经过了严格的可靠性试验，保证了整机性能的稳定性。
5. 宽视野的门架设计，优化了门架结构，使操作者的视野更加开阔，作业效率及安全性得以提高。
6. 宽敞的操作空间，可调节式的方向盘和座椅，操作者可以选择最佳的驾驶位置。
7. 各操纵系统合理布局，充分体现人机工程原理，提高舒适性，降低操作者的劳动强度。
1. 3-wheel forklift, have small turning radius than 4-wheel, can be used in limited space.
2. Top quality controller system from CURTIS, high reliability, ensures best performance in different states.
3. High-strength frame design and mast, strong and durable, ensures longer service life
4. Wide view mast design, strong enough and make the operator has a fine view, work efficiently and safely.
5. Large inner & outer rail rollers provide additional capacity, less friction and resistance to wear compared to lighter materials used by competitive manufactures.
6. The hydraulic lift system is designed with a load lowering valve that reduces decent should the system lose pressure.

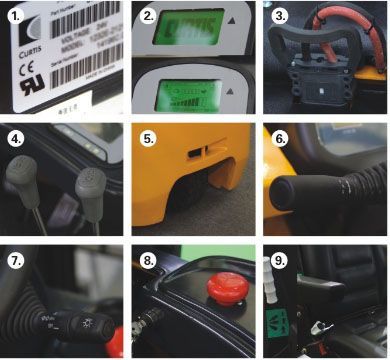

可选配置 OPTIONAL
 |
1.美国CURTIS控制器 2.CURTIS仪表盘，带低电压保护 3.德国REMA充电插件 4.操纵杆控制货叉起升下降，门架前倾后仰 5.三支点后轮驱动，转弯半径小 6.简单的前进后退档 7.仿汽车用车灯转向杆 8.紧急情况下可按下红色断电开关，切断所有电源，车子立即停止 1.CURTIS controller from America 2.CURTIS dashboard, have the function of low battery shut down 3.REMA plug from Germany 4.The levers control lifting of forks and tilt of mast 5.3-wheel forklift, have smaller turning radius 6.Simple forward and reverse gears 7.Light turning control bar like car 8.Press the red button in an emergency, cut down all the power, stop the truck |

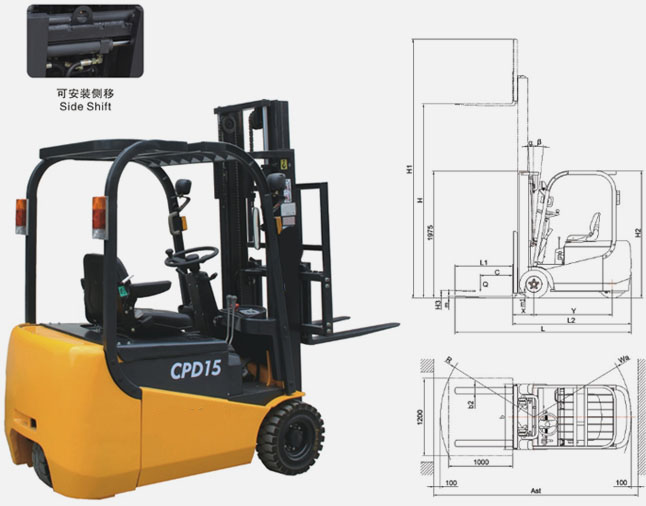

技术参数 TECHNICAL DATA
|
特性 Identification |
产品型号 Model |
|
|
CPD15 |
||||
|
配置号 Config-code |
|
|
SE15 |
|||||
|
驱动形式 Drive Unit |
|
|
电动 Electric |
|||||
|
驾驶方式 Operation Type |
|
|
座驾式 Seated |
|||||
|
额定载重 Load Capacity |
Q |
kg |
1500 |
|||||
|
载荷中心Load Center |
C |
mm |
500 |
|||||
|
基本尺寸 Dimension |
总长Overall length |
L |
mm |
2750 |
||||
|
车体宽度 Overall width |
b |
mm |
1016 |
|||||
|
总高 Overall height |
门架静止 Closed mast |
|
mm |
1980 |
||||
|
护顶架Overhead guard |
H2 |
mm |
2180 |
|||||
|
起升高度Lift height |
H |
mm |
3000 |
|||||
|
作业时最大高度Max working height |
H1 |
mm |
4028 |
|||||
|
自由提升高度Free lift height |
H3 |
mm |
125 |
|||||
|
货叉尺寸Fork dimensions |
L1xb2xm |
mm |
900x100x35 |
|||||
|
最小离地间隙Min. ground clearance |
m1 |
mm |
90 |
|||||
|
最小堆垛通道 Min. aisle width for stacking |
Ast |
mm |
3180 (800x1200 pallet) |
|||||
|
mm |
3300 (1000x1200 pallet) |
|||||||
|
门架倾角Mast obliquity |
α/β |
° |
3/6 |
|||||
|
轴距 Wheelbase |
Y |
mm |
1220 |
|||||
|
前悬距 Front overhang |
X |
mm |
330 |
|||||
|
转弯半径Turning radius |
Wa |
mm |
1520 |
|||||
|
性能 Performance |
行驶速度 Travel speed |
满载 Loaded |
|
Km/h |
11 |
|||
|
空载 Unloaded |
|
Km/h |
12 |
|||||
|
提升速度 Lift speed |
满载 Loaded |
|
mm/s |
270 |
||||
|
空载 Unloaded |
|
mm/s |
500 |
|||||
|
下降速度 Lowering speed |
满载 Loaded |
|
mm/s |
500 |
||||
|
空载 Unloaded |
|
mm/s |
500 |
|||||
|
爬坡能力Gradeability(满载Loaded/空载Unloaded) |
% |
12/15 |
||||||
|
制动方式 Brake type |
|
|
液压制动 Hydraulic |
|||||
|
电机 Motor |
驱动电机功率 Drive motor power |
|
KW |
5.0 |
||||
|
提升电机功率 Lift motor power |
|
KW |
6.0 |
|||||
|
蓄电池Battery |
|
Ah/V |
450/48 |
|||||
|
重量 Weight |
净重(不含电池) Net weight without battery |
|
Kg |
2285 |
||||
|
电池重量Battery weight |
|
kg |
730 |
|||||
