Battery counterbalance truck
Mini balance heavy power forklift
Details
|
主要特点 1. 结构紧凑，小巧灵活 2. 座驾舒适操作方便 3. 进口电控配置，合理可靠 4. 二级门架，自由提升，可用于集装箱 |
MAIN CHARACTER 1. Compact structure，light and flexible 2. Convenient driving with comfortable seat 3. Imported controller ,safe and reliable 4. 2-layer mast with free lifting, can be operated in container |
可选配置 OPTIONAL
 |

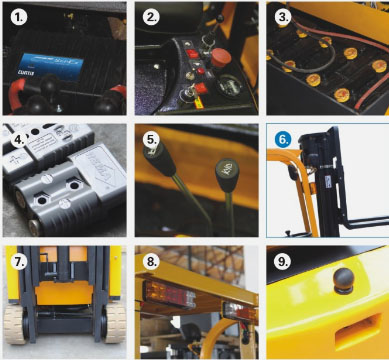

1.美国CURTIS控制器 2.CURTIS电量表，带低电压保护 3.385Ah大容量蓄电池 4.德国REMA充电插件 5.操纵杆控制货叉起升下降，门架前倾后仰 6.带自由提升，货叉起升时门架不起升 7.实心无痕橡胶轮胎，保护地面 8.三种颜色后灯，分别为制动、倒车、转向警示灯 1.CURTIS controller from America 2.CURTIS coulombmeter, have the function of low battery shut down 3.385Ah large capacity battery 4.REMA plug from Germany 5.The levers control lifting of forks and tilt of mast 6.With free lifting height, when forks raising, mst is still 7.Solid traceless tyres, protect the floor 8.Three different colours, means brake, reverse and turning |
技术参数 TECHNICAL DATA
|
特性 Identification |
产品型号Model |
|
CPD10 |
||||||
|
配置号 Config-code |
|
SA10 |
|||||||
|
驱动形式Drive Unit |
|
电动Electric |
|||||||
|
驾驶方式Operation type |
|
座驾式Seated |
|||||||
|
额定载重Load capacity |
Q |
kg |
1000 |
||||||
|
载荷中心Load center |
C |
mm |
400 |
||||||
|

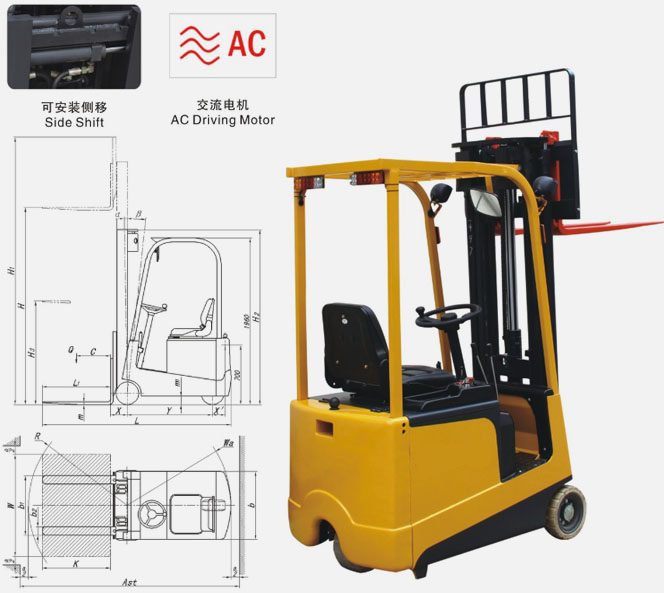

基本尺寸 Dimension |
总长Overall length |
L |
mm |
2238 |
|||||
|
车体宽度Overall width |
b |
mm |
820 |
||||||
|
总高 Overall height |
门架静止 Closed mast |
H2 |
mm |
1757 |
2057 |
||||
|
护顶架Overhead guard |
|
mm |
1895 |
1895 |
|||||
|
起升高度Lift height |
H |
mm |
2500 |
3100 |
|||||
|
作业时最大高度Max working height |
H1 |
mm |
3350 |
3950 |
|||||
|
自由提升高度Free lift height |
H3 |
mm |
920 |
1220 |
|||||
|
货叉尺寸Fork dimensions |
L1×b2×m |
mm |
800×100×32 |
||||||
|
货叉外宽Maximum fork width |
b1 |
mm |
200-700可调 (Adjustable) |
||||||
|
最小离地间隙Minimum ground clearance |
m1 |
mm |
100 |
||||||
|
最小直角通道Min. right angle Aisle width |
|
mm |
1635 |
||||||
|
最小堆垛通道Min. aisle width for stacking |
Ast |
mm |
2590（for Pallet 1200×800） |
||||||
|
门架倾角Mast obliquity |
α/β |
° |
1/6 |
||||||
|
轴距Wheelbase |
Y |
mm |
983-1050 |
||||||
|
前悬距Front overhang |
X |
mm |
200 |
||||||
|
后悬距Rear overhang |
X’ |
mm |
152 |
||||||
|
转弯半径Turning radius |
Wa |
mm |
1225 |
||||||
|
性能 Performance |
行驶速度 Travel speed |
满载loaded |
Km/h |
6.3 |
|||||
|
空载unloaded |
Km/h |
8.0 |
|||||||
|
提升速度 Lift speed |
满载loaded |
mm/s |
115 |
||||||
|
空载unloaded |
mm/s |
180 |
|||||||
|
下降速度 Lowering speed |
满载loaded |
mm/s |
187 |
||||||
|
空载unloaded |
mm/s |
125 |
|||||||
|
爬坡能力Gradeability |
% |
8 |
|||||||
|
制动方式Brake type |
|
液压制动Hydraulic |
|||||||
|
电机 Electric Motor |
驱动电机功率Drive motor power |
KW |
2.0 |
||||||
|
提升电机功率lift motor power |
KW |
2.8 |
|||||||
|
蓄电池 Battery |
Ah/V |
385/24 |
|||||||
|
重量 Weight |
净重(不含电池) Weight w/o battery |
kg |
1468 |
1500 |
|||||
|
电池重量 Battery weight |
kg |
345 |
|||||||
