Battery counterbalance truck
Light and small balance heavy electric forklift truck
Details
|
主要特点 1. 结构紧凑，小巧灵活 2. 座驾舒适方便 3. 安全制动，合理可靠 4. 适于小吨位小场合 5. 无污染无噪声 |
MAIN CHARACTER 1. Compact and flexible structure 2. Convenient driving with comfortable seat 3. Safe braking is reasonable and reliable 4. It is suitable for a light load 5. No pollution and no noise |
技术参数 TECHNICAL DATA
|
特性 Identification |
产品型号Model |
|
CPD5 |
|||
|
配置号 Config-code |
|
SZ05 |
||||
|
驱动形式Drive Unit |
|
电动Electric |
||||
|
驾驶方式Operation type |
|
座驾式Seated |
||||
|
额定载重Load capacity |
Q |
kg |
500 |
|||
|
载荷中心Load center |
C |
mm |
350 |
|||
|

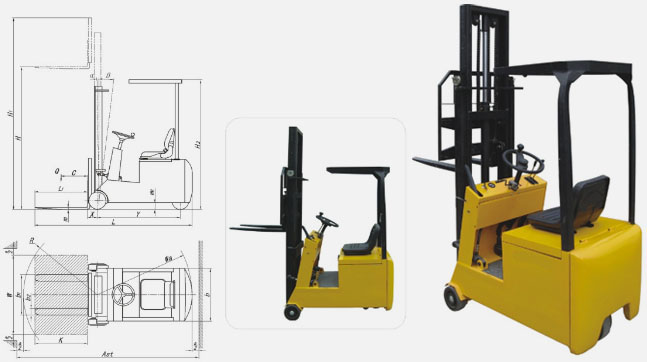

基本尺寸 Dimension |
总长Overall length |
L |
mm |
2080 |
||
|
车体宽度Overall width |
b |
mm |
795 |
|||
|
总高 Overall height |
门架静止 Closed mast |
|
mm |
1775 |
||
|
护顶架 Overhead guard |
H2 |
mm |
1800 |
|||
|
起升高度Lift height |
H |
mm |
2500 |
|||
|
作业时最大高度Max working height |
H1 |
mm |
3290 |
|||
|
货叉尺寸Fork dimensions |
L1×b2×m |
mm |
680×80×30 |
|||
|
货叉外宽Maximum fork width |
b1 |
mm |
160-700可调 (Adjustable) |
|||
|
最小离地间隙Minimum ground clearance |
m1 |
mm |
100 |
|||
|
最小直角通道Min. right angle aisle width |
|
mm |
1660 |
|||
|
门架倾角Mast obliquity |
α/β |
° |
1/9 |
|||
|
轴距Wheelbase |
Y |
mm |
1040 |
|||
|
前悬距Front overhang |
X |
mm |
170 |
|||
|
转弯半径Turning radius |
Wa |
mm |
1250 |
|||
|
性能 Performance |
行驶速度 Travel speed |
满载loaded |
Km/h |
5.8 |
||
|
空载unloaded |
Km/h |
7.0 |
||||
|
提升速度 Lift speed |
满载loaded |
mm/s |
107 |
|||
|
空载unloaded |
mm/s |
132 |
||||
|
下降速度 Lowering speed |
满载loaded |
mm/s |
148 |
|||
|
空载unloaded |
mm/s |
154 |
||||
|
爬坡能力Gradeability |
% |
8 |
||||
|
制动方式Brake type |
|
电磁制动Electric-magnetic |
||||
|
电机 Electric Motor |
驱动电机功率Drive motor power |
KW |
0.75 |
|||
|
提升电机功率lift motor power |
KW |
2.0 |
||||
|
蓄电池 Battery |
Ah/V |
160/24 |
||||
|
重量 Weight |
净重(不含电池) Weight without battery |
kg |
800 |
|||
|
电池重量 Battery weight |
kg |
168 |
||||
