Semi –electric pallet truck
Economic semi electric pallet carrier
Details
|
主要特点 1. 手压起升，电动行走 2. 高强度车身设计，适合高强度工作场所，使用寿命长 3. 制动可靠安全，操作灵活，起步平稳 4. 二档电压调速，可选配无极调速
|
MAIN CHARACTER 1. Manual lifting, power traveling 2. High-strength frame design, suitable for tough workplaces, ensures longer service life 3. Reliable and safe brake, flexible operation and steady starting 4. 2-gear voltage speed adjustment, can choose to install poleless speed adjustment |
技术参数 TECHNICAL DATA
|
特性 Identification |
产品型号Model |
|
CBD20 |
|||||||
|
配置号 Config-code |
启动电池 Start battery |
|
B10 |
B15 |
B20 |
\ |
\ |
|||
|
牵引电池 Traction battery |
|
\ |
\ |
BQ20 |
BQ25 |
BQ30 |
||||
|
驱动形式Drive Unit |
|
半电动Semi-electric |
||||||||
|
驾驶方式Operation type |
|
步行式Pedestrian |
||||||||
|
额定载重Load capacity |
|
kg |
1000 |
1500 |
2000 |
2500 |
3000 |
|||
|

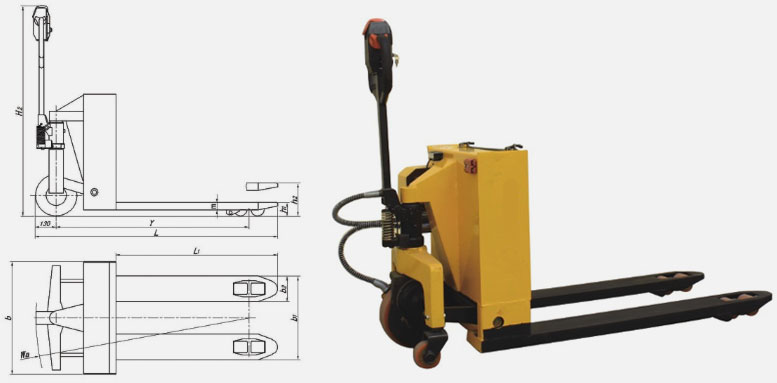

基本尺寸 Dimension |
总长Overall length |
L |
mm |
1530 |
1530 |
1530 |
1660 |
1660 |
||
|
总宽Overall width |
b |
mm |
600 |
600 |
720 |
720 |
720 |
|||
|
总高Overall height |
H2 |
mm |
1240 |
|||||||
|
最小货叉高度Min. fork height |
h1 |
mm |
85/140 |
|||||||
|
最大货叉高度Max. fork height |
h2 |
mm |
205/260 |
|||||||
|
货叉尺寸Fork dimensions L1×b2×m |
mm |
1200x160x45 |
||||||||
|
货叉外宽Maximum fork width |
b1 |
mm |
530/680 |
|||||||
|
转弯半径Turning radius |
Wa |
mm |
1560 |
1560 |
1560 |
1690 |
1690 |
|||
|
轴距Wheelbase |
Y |
mm |
1195 |
1195 |
1195 |
1195 |
1325 |
|||
|
性能 Performance |
行驶速度 Travel speed |
满载loaded |
Km/h |
4.5 |
4.2 |
4.0 |
3.9 |
3.8 |
||
|
空载unloaded |
Km/h |
6.7 |
6.5 |
6.3 |
6.1 |
6.0 |
||||
|
制动方式Brake type |
|
电磁制动Electric-magnetic |
||||||||
|
电机 Electric Motor |
驱动电机功率Drive motor power |
KW |
0.55 |
0.75 |
0.75 |
0.75 |
0.75 |
|||
|
蓄电池 Battery |
Ah/V |
60/24 |
120/24 |
120/24 |
160/24 |
160/24 |
||||
|
重量 Weight |
净重(不含电池) Weight w/o battery |
kg |
223 |
273 |
285 |
300 |
300 |
|||
|
电池重量 Battery weight |
kg |
32 |
66 |
66/96 |
96 |
96 |
||||
