Semi –electric pallet truck
Standard half electric pallet carrier
Details
|
主要特点 1. 手压起升，电动行走 2. 高强度车身设计，适合高强度工作场所，使用寿命长 3. 制动可靠安全，操作灵活，起步平稳 4. 三档电阻调速，可选配无极调速 |
MAIN CHARACTER 1. Manual lifting, power traveling 2. High-strength frame design, suitable for tough workplaces, ensures longer service life 3. Reliable and safe brake, flexible operation and steady starting 4. 3-gear resistance speed adjustment, can choose to install poleless speed adjustment |
技术参数 TECHNICAL DATA
|
特性 Identification |
产品型号Model |
|
CBD20 |
||||
|
配置号 Config-code |
电阻调速 resistance speed adjustment |
|
A15 |
A20 |
|||
|
无极调速 poleless speed adjustment |
|
AW15 |
AW20 |
||||
|
驱动形式Drive Unit |
|
半电动Semi-electric |
|||||
|
驾驶方式Operation type |
|
步行式Pedestrian |
|||||
|
额定载重Load capacity |
|
kg |
1500 |
2000 |
|||
|

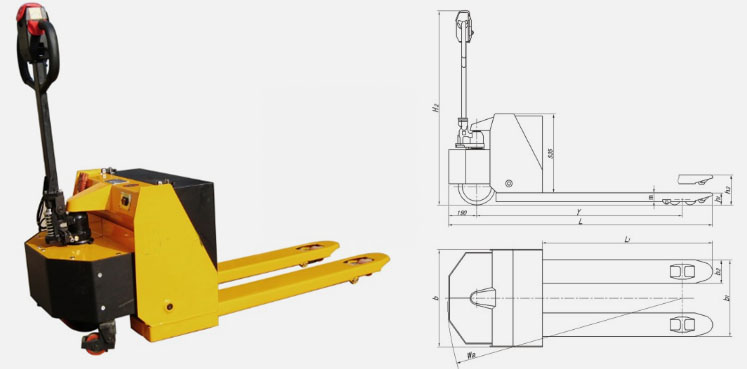

基本尺寸 Dimension |
总长Overall length |
L |
mm |
1785 |
|||
|
总宽Overall width |
b |
mm |
660/680 |
||||
|
总高Overall height |
H2 |
mm |
1310 |
||||
|
最小货叉高度Min. fork height |
h1 |
mm |
85 |
||||
|
最大货叉高度Max. fork height |
h2 |
mm |
205 |
||||
|
货叉尺寸Fork dimensions |
L1×b2×m |
mm |
1150x160x60 |
||||
|
货叉外宽Maximum fork width |
b1 |
mm |
520 / 680 |
||||
|
转弯半径Turning radius |
Wa |
mm |
1600 |
||||
|
轴距Wheelbase |
Y |
mm |
1390 |
||||
|
性能 Performance |
行驶速度 Travel speed |
满载loaded |
Km/h |
4.2 |
4.2 |
||
|
空载unloaded |
Km/h |
9.1 |
|||||
|
制动方式Brake type |
|
电磁制动Electric-magnetic |
|||||
|
电机 Electric Motor |
驱动电机功率Drive motor power |
KW |
0.75 |
||||
|
蓄电池 Battery |
Ah/V |
80/24 |
135/24 |
||||
|
重量 Weight |
净重(不含电池) Weight w/o battery |
kg |
235 |
249 |
|||
|
电池重量 Battery weight |
kg |
48 |
100 |
||||
