Hydraulic tank truck
主要特点 MAIN CHARACTER 1. 适用于对钢制油桶的搬运 2. 高品质油缸、省力快捷 3. 起升过程中自动夹紧油桶，工作安全可靠 4. DTW款支腿设计适用于对放置在托盘中间的油桶进行操作 1. Suitable for steel drums handling. 2. Less lifting force by a reliabl
Details
主要特点 MAIN CHARACTER
1. 适用于对钢制油桶的搬运
2. 高品质油缸、省力快捷
3. 起升过程中自动夹紧油桶，工作安全可靠
4. DTW款支腿设计适用于对放置在托盘中间的油桶进行操作
1. Suitable for steel drums handling.
2. Less lifting force by a reliable hydraulic pump.
3. Easier moving with two big size rollers and one caster wheel.
4. DTW Straddle leg for picking up drum from a Pallet.
技术参数 TECHNICAL DATA
|
产品型号 Model |
单位Unit |

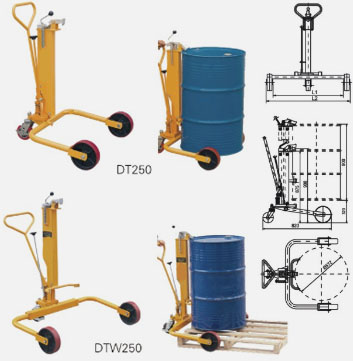

DT250 |
DTW250 |
|
额定载重量 Capacity |
kg |
250 |
250 |
|
适合油桶规格Suitable drum |
|
55加仑钢制油桶 55 gallon steel drum（Φ572×900） |
|
|
油缸行程 Cylinder journey |
mm |
320 |
320 |
|
内宽 L1 |
mm |
670 |
850 |
|
外宽 L2 |
mm |
800 |
1015 |
|
净重 Net weight |
kg |
45 |
45 |
