Reach stacker
Drive type all electric forward shift forklift
Details

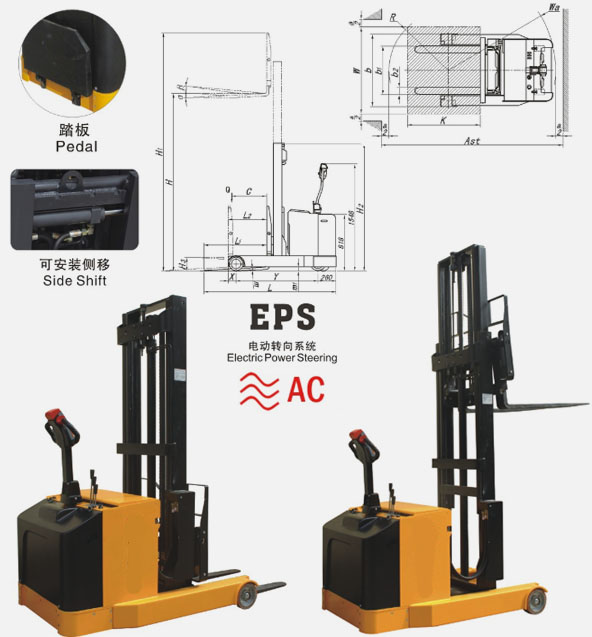

主要特点 MAIN CHARACTER
1. 美国CURTIS交流控制器，质量可靠，性能优异，使整车性能达到最佳状态。
2. WINNER液压站，低噪音，小振动，密封性能好，确保起升下降平稳可靠。
3. 交流驱动电机，免维护，提供强大动力，具有更强的满载爬坡能力。
4. 高强度车身设计，特殊压制工艺制造的“C”型钢门架，坚固耐用，使用寿命长。
5. 采用立式驱动，使电机、刹车等的检测、维修直接方便。
6. 配置大容量牵引电池，电量持久，并选用智能充电器，德国REMA 充电插件，充电方便快捷。
7. EPS电动转向系统，转向轻便。
8. 可选配折叠式踏板，具有缓震功能，可消除操作者在行驶过程中路面给予的冲击。
9. 可选配人性化的护臂结构，开闭操作方便，并具备较强的抗撞击力，真正起到护臂作用。
1. Top quality AC controller system from CURTIS, high reliability, ensures best performance in different states.
2. WINNER hydraulic power pack, low noise, few vibration and excellent leak tightness, ensures smooth lifting.
3. AC traveling motor, maintenance-free, provides stronger power and climbing capability.
4. High-strength frame design and “C” shaped mast, strong and durable, ensures longer service life.
5. Vertical motor designing, ensures inspection and maintenance of motor and brake system conveniently.
6. Configure with 240Ah large capacity battery, intelligent charger, REMA plug from Germany.
7. EPS electric power steering system, turning lightly.
8. Optional folded pedal, with buffering function, avoid shake while traveling.
9. Optional humanized design of handrail, protect the operator when operating.
可选配置 OPTIONAL
 |

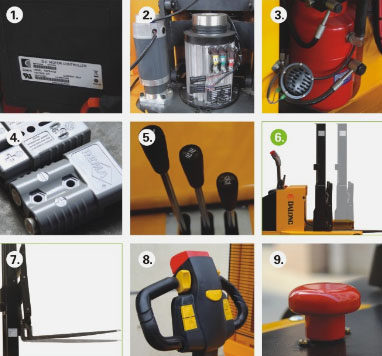

1.美国CURTIS控制器 2.交流立式驱动，带电转向 3.WINNER液压泵站 4.德国REMA充电插件 5.操纵杆控制货叉起升下降，前倾后仰和门架前后移动 6.门架前后移动功能 7.货叉前倾后仰功能 8.人性化设计的操作手把，带紧急反向行驶按钮 紧急情况下可按下红色断电开关，切断所有电源 1.CURTIS controller from America 2.Vertical AC traveling and steering motor, maintenance conveniently 3.WINNER pump station from Taiwan 4.REMA plug from Germany 5.The levers control lifting, tilt of forks, and forward backward of mast 6.Mast can move forward and backword 7.Forks can tilt forward and backword 8.Humanized design of handle, with red reverse button |
技术参数 TECHNICAL DATA
|
特性 Identification |
产品型号Model |
|
CQD10 |
|||||||||||
|
配置号 Config-code |
|
AZ10 |
AZ13 |
AZ15 |
||||||||||
|
驱动形式Drive Unit |
|
电动Electric |
||||||||||||
|
驾驶方式Operation type |
|
步行式 Pedestrian / 站驾式Standing |
||||||||||||
|
额定载重Load capacity |
Q |
kg |
1000 |
1300 |
1500 |
|||||||||
|
载荷中心Load center |
C |
mm |
500 |
|||||||||||
|
基本尺寸 Dimension |
总长Overall length |
L |
mm |
1900 |
1900 |
2015 |
||||||||
|
总宽Overall width |
b |
mm |
1000 |
1000 |
1080 |
|||||||||
|
总高Overall height |
H2 |
mm |
1840 |
2240 |
1840 |
2240 |
1840 |
2240 |
||||||
|
前移距离Reach length |
L2 |
mm |
550 |
|||||||||||
|
起升高度Lift height |
H |
mm |
2500 |
3300 |
2500 |
3300 |
2500 |
3300 |
||||||
|
作业时最大高度Max working height |
H1 |
mm |
3431 |
4231 |
3431 |
4231 |
3431 |
4231 |
||||||
|
自由提升高度Free lift height |
H3 |
mm |
200 |
|||||||||||
|
货叉尺寸Fork dimensions |
L1×b2×m |
mm |
900×100×35 |
|||||||||||
|
货叉外宽Maximum fork width |
b1 |
mm |
230-670可调 (Adjustable) |
|||||||||||
|
货叉倾角Fork obliquity |
α/β |
° |
3/5 |
|||||||||||
|
最小离地间隙Minimum ground clearance |
m1 |
mm |
60 |
|||||||||||
|
轴距Wheelbase |
Y |
mm |
1195 |
1195 |
1310 |
|||||||||
|
前悬距Front overhang |
X |
mm |
110 |
|||||||||||
|
转弯半径Turning radius |
Wa |
mm |
1485 |
1485 |
1600 |
|||||||||
|
性能 Performance |
行驶速度 Travel speed |
满载loaded |
Km/h |
7.1 |
||||||||||
|
空载unloaded |
Km/h |
7.9 |
||||||||||||
|
提升速度 Lift speed |
满载loaded |
mm/s |
98 |
|||||||||||
|
空载unloaded |
mm/s |
132 |
||||||||||||
|
下降速度 Lowering speed |
满载loaded |
mm/s |
191 |
|||||||||||
|
空载unloaded |
mm/s |
157 |
||||||||||||
|
制动方式Brake type |
|
电磁制动Electric-magnetic |
||||||||||||
|
电机 Electric Motor |
驱动电机功率Drive motor power |
KW |
2.0 |
|||||||||||
|
提升电机功率lift motor power |
KW |
2.0 |
||||||||||||
|
转向电机功率 Steering motor power |
KW |
0.2 |
||||||||||||
|
蓄电池 Battery |
Ah/V |
240/24 |
240/24 |
300/24 |
||||||||||
|
重量 Weight |
净重(不含电池) Weight without battery |
kg |
1201 |
1251 |
1358 |
1408 |
1418 |
1468 |
||||||
|
电池重量 Battery weight |
kg |
235 |
235 |
275 |
||||||||||
